Polycab is dedicated to make life better with an extensive range of electrical wire and cables that are manufactured in plants using latest technology (electron beam/buss co-kneaders) with world-class materials under strict quality assurance procedures with total traceability of in-house or approved supplier materials and throughout production processes. The Polycab R & D center is the backbone for compound and metals innovative developments to provide optimum power, weight savings coupled with superior fire performance that assures compliance with all local and international standards validated by comprehensive testing at polycab internal NABL accredited lab and external third-party labs.
3.3Kv to 33Kv Grade- (BASEC/KEMA/CPRl/ERDA tested) three core Copper / Aluminium Conductor,Conductor screened with extruded semi-conducting compound, XLPE Insulated, insulation screened with semiconducting compound in combination with copper tape (0.3 KA for One Sec.), PVC ST2/FR/FRLSH/LSZH Inner Sheathed armoured/ GI Steel (Aluminium in case of single core) FLAT/Round Armoured and Overall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm, above cables can be supplied with lead sheath whenever required.

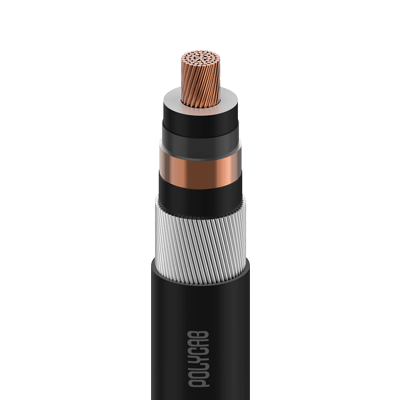

3.3kv to 33kv grade-(BASEC/KEMA/CPRl/ERDA Tested) Single core copper /Aluminium Conductor, Conductor screened with extruded semi-conducting compound (11KV E & above), XLPE Insulated, Insulation screened with semiconducting compound (11KV E & above) in combination with copper tape , Unarmoured/ Aluminium Flat Strip / Round Wire Armoured and verall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm above cables can be supplied with lead sheath whenever required.
3.3kv to 33kv grade-(BASEC/KEMA/CPRl/ERDA Tested) Single core copper /Aluminium Conductor, Conductor screened with extruded semi-conducting compound (11KV E & above), XLPE Insulated, Insulation screened with semiconducting compound (11KV E & above) in combination with copper tape , Unarmoured/ Aluminium Flat Strip / Round Wire Armoured and overall PVC ST2/ FR/ FRLSH/ LSZH sheathed cable conforming to IS:7098/ll/85, IEC 60502-2/ BS 7835 From sizes 35 sq.mm to 1200 Sq.mm above cables can be supplied with lead sheath whenever required.

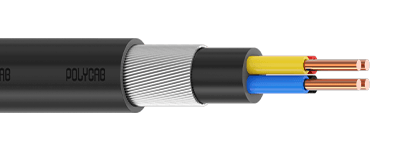

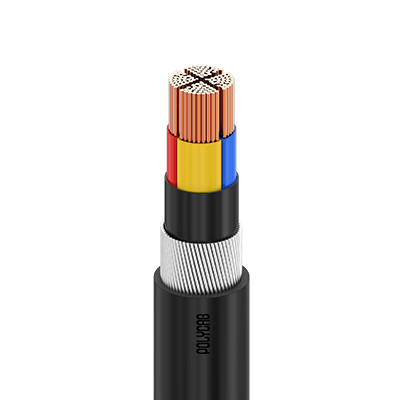

1100 Volts Grade- (BASEC/KEMA/CPRI/ERDA tested) Control Copper Cables, Solid/Stranded conductor, PVC/XLPE/HR PVC Insulated, Cores laid up, PVC/ HR PVC/ FR/ FRLSH/ LSZH Taped/Extruded Inner Sheathed, Unarmoured/ GI Steel (Round Wire/Flat Strip) Armoured, Extruded PVC/ HR PVC/ FR/ FRLSH/ LSZH Outer Sheathed, cables from 2 to 100 crore in 1.5 and 2.5.sq.mm as per IS 1554(Part1) / IS 7098(Part1) 1998 and Generally confirming to IEC60502-1/BS 5467/BS 6724
Stranded/Solid Copper Conductor, PE/PVC/HRPVC/ XLPE/Silicon/FRXLPE Insulated Each PAIR/ TRIAD/ QUAD Laid up Shielded Individually with AL MYLAR along with ATC drain wire, All PAIRS/ TRIADS/QUADS then laid up together overall Shielded With AL MYLAR along with ATC drain wire, PVC T1/FRLSH/PVC ST2/ LSZH Inner Sheathed Unarmoured/ GI Steel Round Wire/Strip/ GI Steel Wire Armoured (Braided),PVC ST1/ FR/FRLSH/PVS ST2/LSZH Outer Sheathed from 2 PAIR/TRIAD/QUAD to 61 PAIR/TRIAD/QUAD in sizes 0.5 sq.mm to 2.5 sq.mm
Energy Efficient wires range 0.50 SQ.MM to 1000 SO.MM in lass 5 copper conductors with different insulation properties.

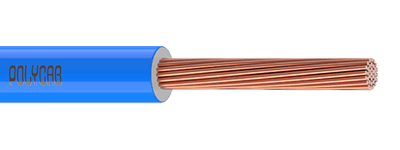

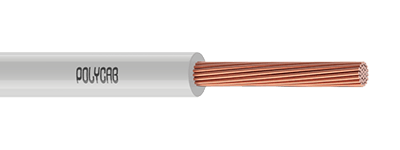

Single core multi-stranded copper conductor, PVC insulated wires with normal flame retardant properties.
Single core multi-stranded copper conductor, HRFR PVC insulated wire with heat resistant and excellent flame retardant properties.

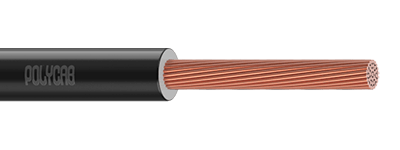

Single core multi-stranded copper conductor, HR PVC insulated wire with heat resistant and normal flame retardant properties.
Single core multi-stranded copper conductor, HR-FRLSH PVC insulated wires with heat resistant, excellent flame retardant and low smoke properties.

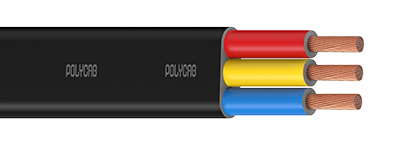

Flat : 3 core x 1.50 SQ.MM, Round : 3 core and 4 core x 1.5 SQ.MM in class 5 copper conductors with pcv/xlpe insulation and PVC/XLPE st2 sheathing properties.

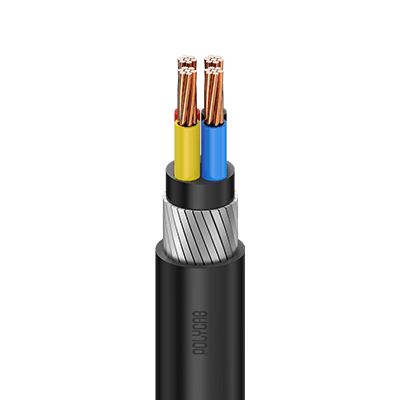

2 core to 61 core x 0.50 sq.mm to 4 sq.mm, 2 core to 4 core from 6 sq.mm to 120 sq.mm in class 5 copper conductors with different insulation and sheathing properties.

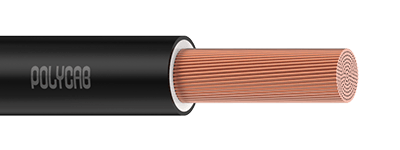

Type 1 : Class 5 ATC copper conductor, insulated and sheathed with Electron beam XLPO confirming to TUC standard EN-50618.
Type 3 : Class 5 Base copper conductor, XLPE insulated and PVC UV stabilized Sheathed.
Range : RG 59 F, RG 6 F, RG 6 ccs RG 11 f and RG 11 F ccs – nitrogen gas injected polyethylene form insulation, composite aluminum foil laminated and al-alloy braided for low attenuation with minimum structured return loss under extreme weather conditions to give excellent single quality giving clear reception on higher bandwidth covering more then 100 channels.

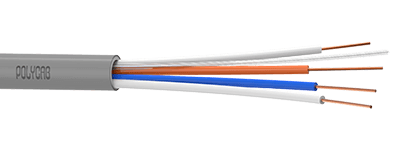

Range : 1 pair to 100 pair x 0.40 mm,0.50 mm and 0.63 mm in a solid bare conductor with HDPE insulation and flame retardant jacketing having low cross talk and attenuation.

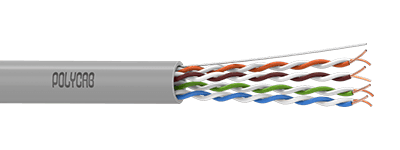

Range : CAT 5E & CAT 6 – twisted pair, insulated with high-quality polyethylene and unshielded light gray PVC jacket with improved fire retardant properties, low attenuation, and cross talk and low structural return loss.

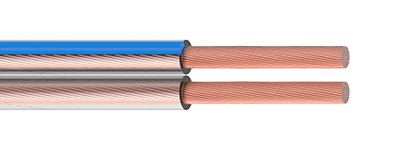

Range : twin parallel 23/36, 23/38, 40/36 and 40/38 – Polycab provides speaker cables with high-quality oxygen-free copper conductor ensuring excellent sound quality for your expensive sound system. Selecting the right gauge, length and type of speaker wire for your system helps to avoid a mismatch with your sound system.
Light in motion. That is how we define our Optical Fiber division. Astate of the art manufacturing unit duly supported by our skilled andhighly expert team. Polycab is working closely with the Government ofIndia projects such as Digital India, Make in India, BharatNet, SmartCities for a better and futuristic India.Light in motion. That is how we define our Optical Fiber division. Astate of the art manufacturing unit duly supported by our skilled andhighly expert team. Polycab is working closely with the Government ofIndia projects such as Digital India, Make in India, BharatNet, SmartCities for a better and futuristic India.
